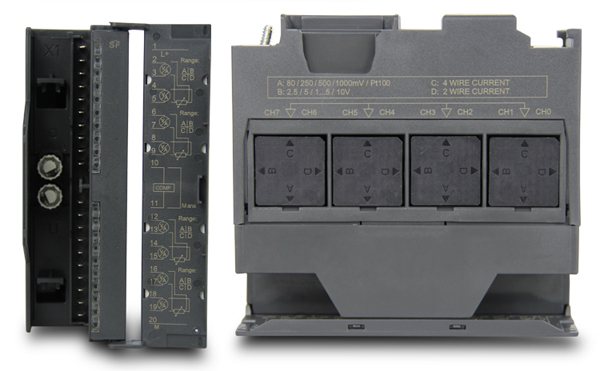

SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

Ask Lasest Price
Brand Name :	Jetacon
Certification :	UL, CE
Model Number :	6ES7 331-1KF02-0AB0
Price :	Get latest price
Delivery Time :	7-20 working days
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	1KK poles monthly

Add to Cart

Product Details
Company Profile

SM331 Analog I/O Module Compatible PLC S7-300 6ES7 331-1KF02-0AB0 331-7KF02-0AB0

Type Number Available :

6ES7 331-1KF02-0AB0
6ES7 331-7KF12-0AB0

Model	SM331	SM331

	8AI	8AI
Product Description	8AI;	8AI;

	voltage/current/RTD temperature measurement modules;	Full-function temperature measurement modules; Resolution:16bits;

	Resolution:13bits	Short-circuit protection ;High immunity;

	Optical isolation with high immunity;
Power consumption
·Rate value	/	24V DC
·From backplane bus current consumption	90mA	100mA
·From L+		25mA
·Power loss	0.4W	1W
The power of transmitter
·Supply current		Per channel (Max):60mA
·short-circuit protection		Yes
Number of analog inputs	8	8
Cable Length (Shielded)	Max:200m	200m Max.For 80mV:50m
Input type and input range
·voltage	1~5V,0~10V,±50mV	±80mV, ±250mV,

	±500mV, ±1V, ±5V, ±10V	±500mV,±1V, ±2.5V ±5V,1~5V, ±10V
·current(4wire)	±20mA, 0~20mA, 4~20mA	±3.2mA, ±10mA, ±20mA, 4~20mA
·current(2wire)		4~20mA
·tesistance	600Ω,6KΩ	600Ω, 300Ω, 150Ω,
·thermocouple		K,J,N,E,L
·RTD	Pt100(-200°C-850°C)	Pt100,Ni100
A/D resolution	13bits	16bits
Basic conversion time(per channel)	66/55ms	0.5ms/125ms/25ms/100ms
Interference frequency suppression	50/60Hz	400/50/60/10Hz
Tolerance(Over entire temperature range)
·Voltage	±0.6%	±0.6%
·Current	±0.6%	±0.6%
·resistance	±0.6%	±0.6%
·temperature	±1°C	±1°C
Interrupts
Diagnostic interrupt	None	Per group Yes,Configurable
Limit-value interrupt	None	Yes,Configurable
Isolation tested for contact
·Between channels	None	None
·Between channels and backplane bu	Yes	Yes
Front connector	40-pin	20-pin
Dimensions(WxHxD)(mm)	40×125×120	40×125×120
Order Number	SM 331-1KF01-0AB0	SM 331-7KF02-0AB0
