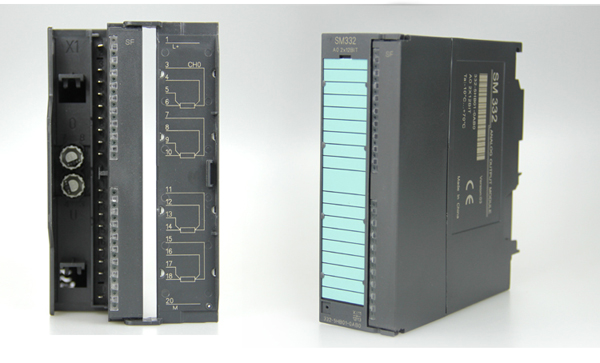

SM332 Analog I/O Module Compatible PLC S7-300 6ES7 332-5HF00-0AB0 332-5HD01-0AB0

Product Categories

Jetacon Technology Limited

Contact Now

Name: SM332 Analog IO Module Compatible PLC S7300 6ES7 3325HF000AB0 3325HD010AB0
Brand: Jetacon
Price: 1 USD

Add to Cart

Type Number Available :

6ES7 332-5HB01-0AB0
6ES7 332-5HD01-0AB0
6ES7 332-5HF00-0AB0

Model	SM332	SM332

	4AO	8AO
Product Description	4AO; Resolution:12bits; High-accuracy	8AO; Resolution:12bits; High-accuracy

Power consumption
·From bus current consumption	40mA	100mA
·From L+	40mA	70mA
·Power loss	3W	6W
Number of analog outputs	4	8
Load voltage+rated value	24V	24V
Shielded cable length,Max	200m	200m
Voltage output,	Yes	Yes

Max,short circuit Current
Voltage output,	25mA	25mA

Short circuit current(Max)
Voltage output,	18V	18V

Open-circuit current,Max
Load impedance
·Voltage outputs,Min	1KΩ	1KΩ
·current outputs,Max	500Ω	500Ω
Output ranges
·voltage	±10V,0~10V,1~5V	±10V,0~10V,1~5V
·current	±20mA,0~20mA,4~20mA	±20mA,0~20mA,4~20mA
D/A resolution	12bit	12bit
conversion time(per channel)	Max:0.8ms	Max:0.8ms
Setting time
·Resistive loads	0.1ms	0.1ms
·Capacitive loads	3.3ms	3.3ms
·Inductive loads	0.5ms	0.5ms
Output cross talk	>40dB	>40dB
Tolerance(Over entire temperature range)
·Voltage output	±0.5%	±0.5%
·Current output	±0.6%	±0.6%
Diagnostic interrupt	None	None
Group fault error	Red LED	Red LED
Isolution tested for contact
·Between channels and backplane bus	Yes	Yes
·Between channels and load voltage L+	Yes	Yes
Front connector	20-pin	40-pin
Dimensions(W x H x D)(mm)	40×125×120	40×125×120
Order Number	SM 332-5HD01-0AB0	SM 332-5HF00-0AB0
