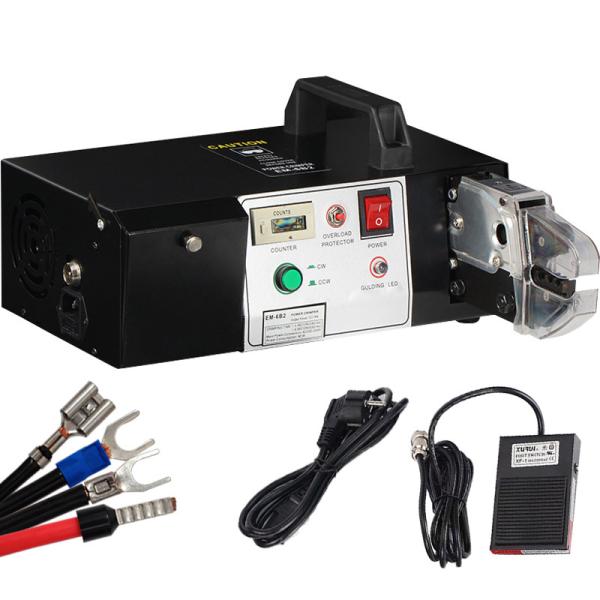

Electrical Powered Wire Terminals Crimper Handheld Automatic Crimping Tool 220V / 110V

Ask Lasest Price
Brand Name :	Jetacon
Certification :	UL, CE
Model Number :	E-6B2
Price :	US $1099/ Piece
Delivery Time :	7-20 working days
Payment Terms :	T/T, L/C, Paypal, Payoneer
Supply Ability :	1KK poles monthly

Add to Cart

Product Details
Company Profile

Electrical Powered Wire Terminals Crimper Handheld Automatic Crimping Tool 220V / 110V

Specifications:

Handheld Battery Powered Crimping Tool ( It is not a hydraulic driving, it is motor driving)

Net Weight:1.0kg

Crimping force: 75KN

Crimp/charge: 250 times around

(Note:The crimper is ideal for big terminal lugs, so it needs large volume battery energy)

Crimp Range: Terminal Lug Diameter 6mm - 50mm ( 3AWG minium)

Crimping cycle: 3-4s (depend on the size of cable)

Operation Voltage: 10.8V lithium battery

Charger Voltage Input: 100V - 265V ( Universal)

Capacity: 1.3Ah

Charging time: 2 hours

Package: PVC case ( 30cm x 21cm x 5cm)

ACCESSORIES:

Battery: 1 PC

Charger: 1 PC

Features:

Type EM-6B1/EM-6B2 is an ideal crimper for connection in cabinet.

It is applicable for pre-insulated terminal crimping from 0.25mm2 to 10mm2 and Cu/AI cutting in 7mm.

It is supplied with seven kinds of accurate and replaceable die sets. The crimper has high working efficiency and wide application.
The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping force but crimping speed.

It is good for terminal crimping in large or medium quantity. If there are a lot of different kinks of terminals to be crimped, this crimper is the best choice.

Specification
Model	EM-6B1 (110V)	EM-6B2 (220V)
Output	12.7KN	12.7KN
Max Crimping Force	Insulated Terminal 5.5mm2	Insulated Terminal 5.5mm2
Crimping Time	1.5s(60Hz)	1.5s(60Hz)
Crimping Time	1.8s(50Hz)	1.8s(50Hz)
Volts	AC100-125V	AC200-230V
Power Consumption	90W	90W
Dimension	325265150mm	325265150mm
Weight	13Kg	13Kg
