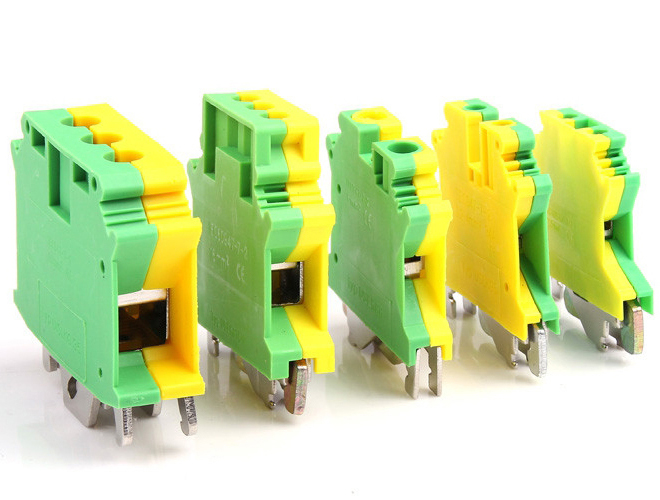

    USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix

    Ask Lasest Price
    Brand Name : Jetacon
    Certification : UL, CE
    Model Number : USLKG-50
    Price : Get latest price
    Delivery Time : 7-20 working days
    Payment Terms : T/T, L/C, Paypal, Payoneer
    Supply Ability : 200 /Pieces per Day
    • Product Details
    • Company Profile

    USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix

    -
    Specifications:
    ---

    Height mm

    62/69.5/67

    Depth/Width/Plate depth mm

    15.2/50/-

    Current/Cross-section A/mm²

    150/50.0


    Technical date IEC 60947-7-1

    Rated date

    IEC

    UL

    CSA

    EN50019

    Rated voltage

    1000

    1000

    600

    750

    Rated current

    150

    150

    112

    145

    Rated cross-section

    35.0

    AWG18-1

    AWG18-2

    35

    Rated impulse withstand/Pollution severity

    8KV/3

    UL 94 flammability rating of insulation material

    V-0 or V-2

    Insulating material/Approval

    PA66


    (H05V/H07V) Lead Rated Cross-section

    Solid/Flexible mm²

    2.5-50.0/2.5-35.0

    Flexible with ferrule mm²

    2.5-35.0/2.5-35.0

    Stripping length mm/in

    16

    Screw-thread/Tightening torque Nm

    M6/3.0-3.5


    Order info

    Color

    Order No.

    Pack.-unit pcs

    Green-yellow

    335904

    50

    ---



    Quality USLKG-50 UK Series DIN Rail Screw Clamp Grounding Terminal Blocks Replace Phoenix for sale
